DT610

DT610

MSRP

The DT610 is a multipurpose dump trailer designed specifically for golf courses, sports fields, and landscaping. The lightweight and durable design is supported by 4 turf tires on walking beam axles which allow for excellent weight distribution and manoeuvrability. With removable sides, automatic tailgate release with adjustable chains, and an optional mesh screen, the DT610 can be configured to meet your needs.

  • GVWR 13,000 lbs (5 ton carry capacity)
  • Level Filled: 3.7 cubic yards
  • Bed Size: 6’ x 10’
  • 2 walking beam axles and four (4) wheels for optimal floatation
  • Available in Green and Red
  • For larger dump trailer requirements, check out the DT711
Category:

Overview

The DT610 is a lightweight, durable dump trailer that utilizes turf tires and a walking beam axle to improve floatation and performance on turf surfaces. With a 6' x 10' bed size, the DT610 can hold 3.7 cubic yards of material when filled level making it an optimal material handler. With a 45 degree dump angle, use the metered dumping and auto latch mechanism to quickly unload with precision. The DT610 comes featured with removable sides, an adjustable hitch, heavy duty jack, turf tires, and walking beam axles to allow for superior maneuverability and versatility. Optional mesh screens are available to assist with side loading jobs to limit overshoot.

Features

45 Degree Metered Dumping

Unload faster and more controlled with the 45 degree dump angle with metered dumping.

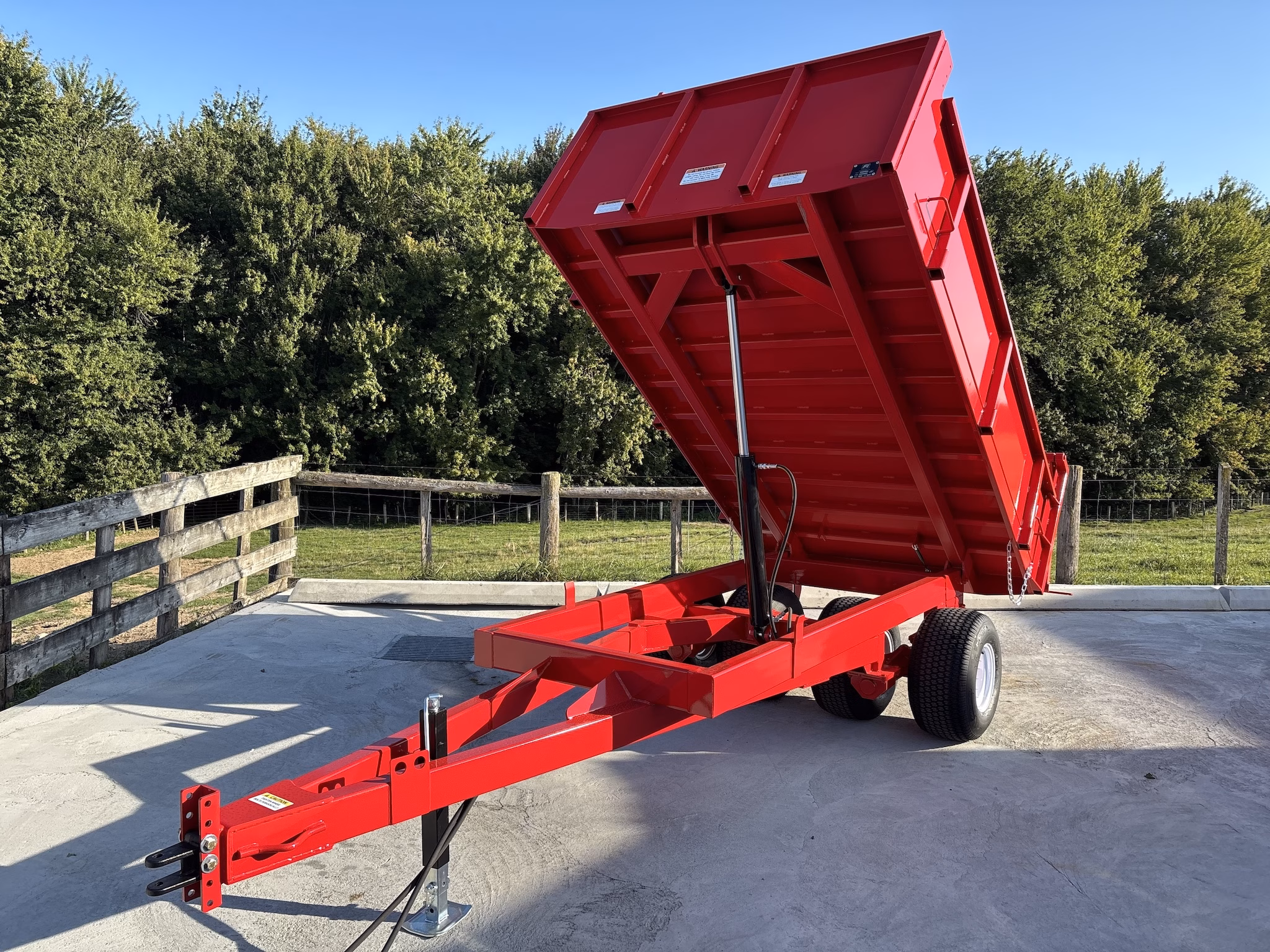

Iso view of dump angle

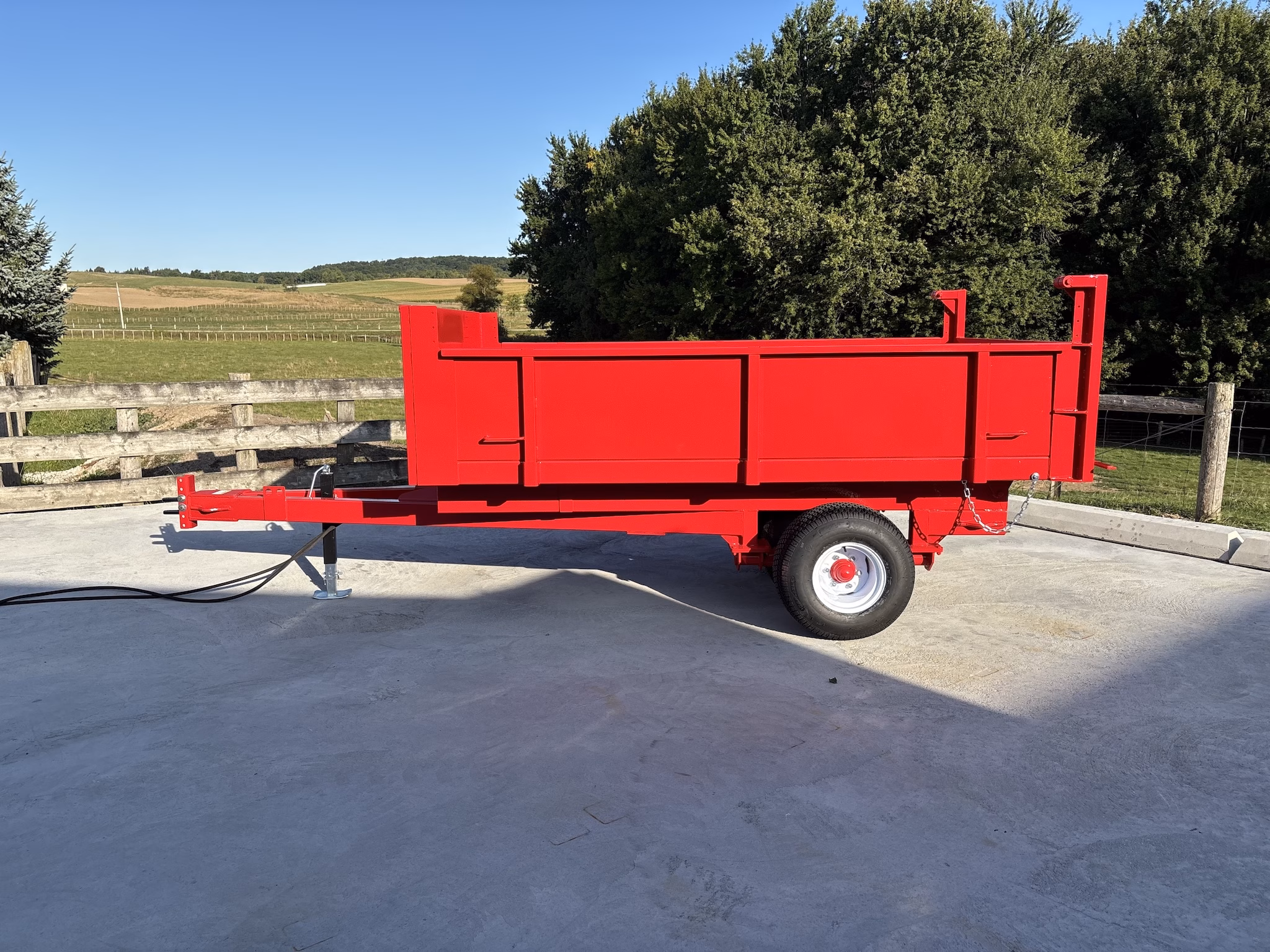

Side view of dump angle

Adjustable chain for metered dumping

Walking Beam Axles

The DT610 features 2 walking beam axles that allow for the tires to pivot 30 degrees. This allows the dump trailer to contour to the surface and provide additional stability and floatation.

Walking beam design

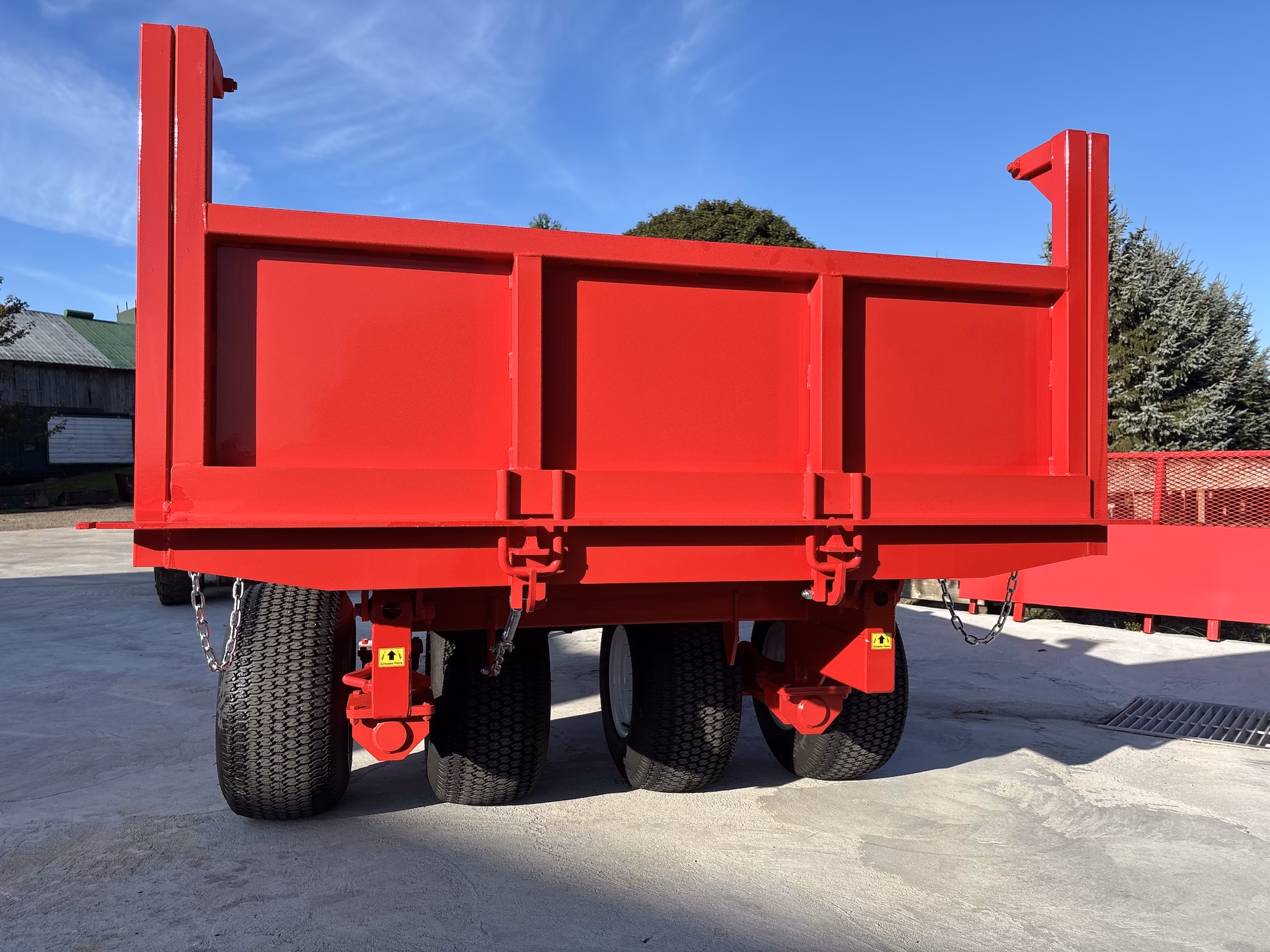

Rear view of tires flexed

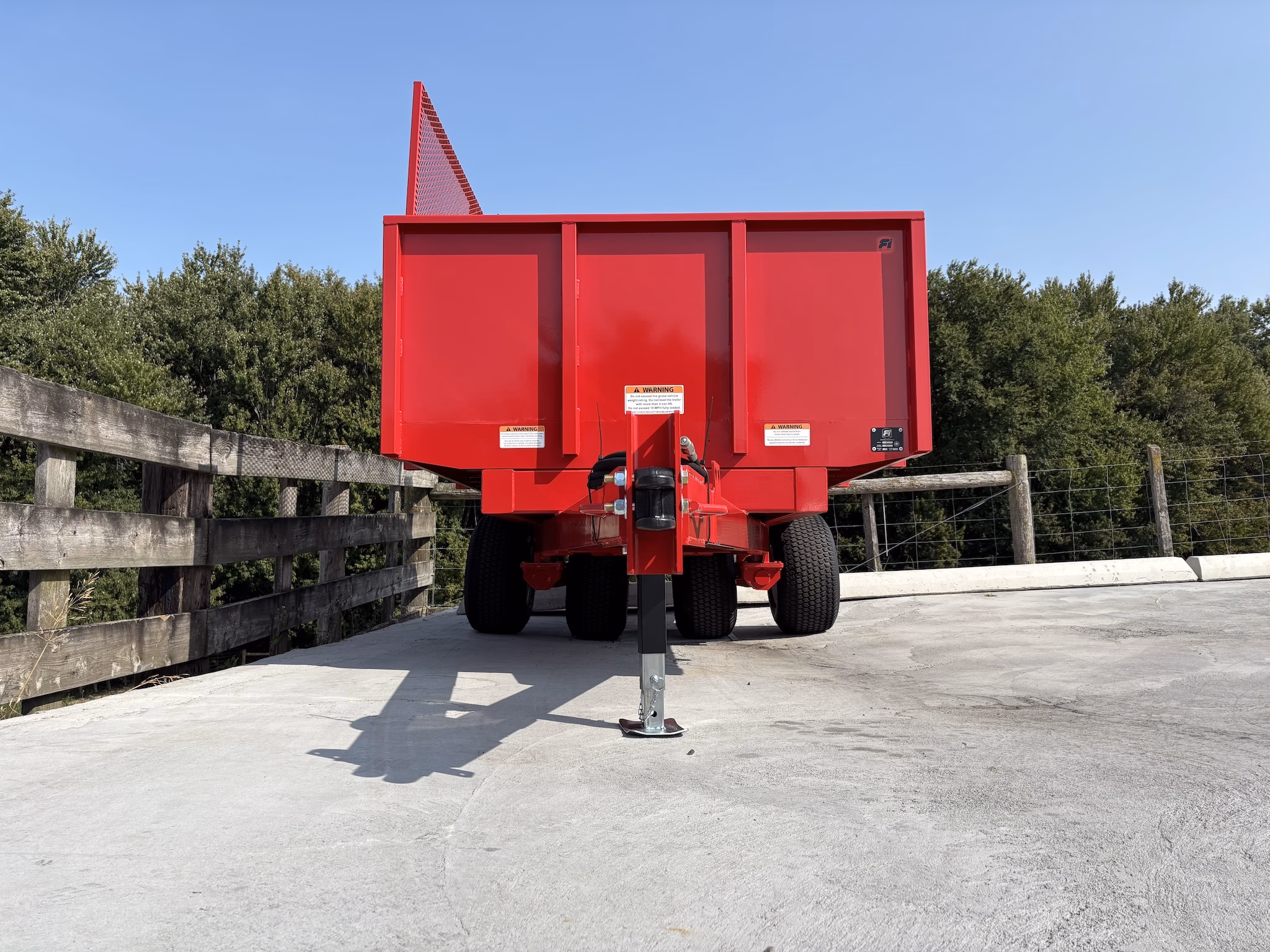

Front view of tires flexed

Removable Sides

The removable sides allow for versatility with the dump trailer to be used as a flat bed. Easily side load the DT610 with the sides removed.

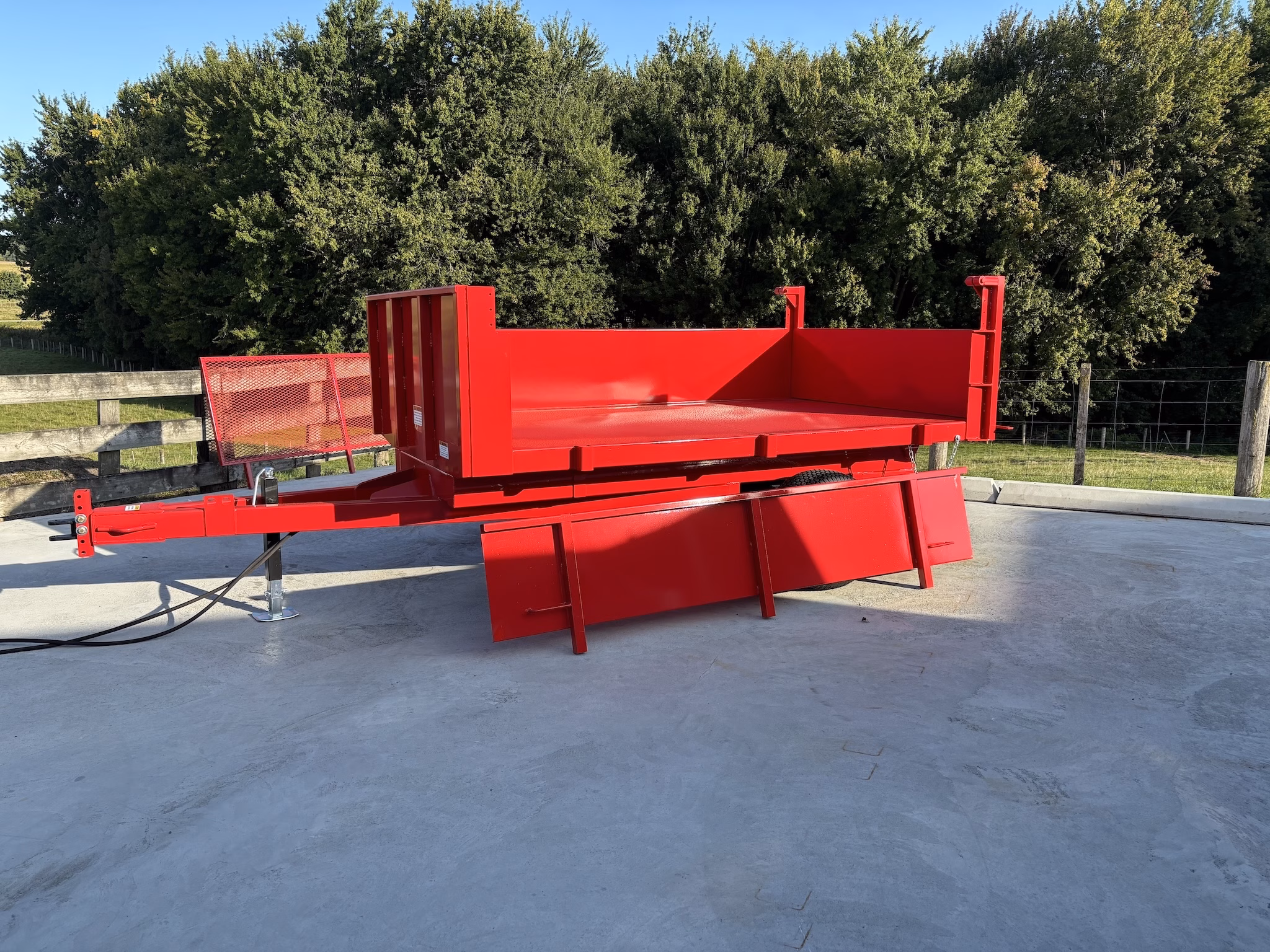

Single side removed

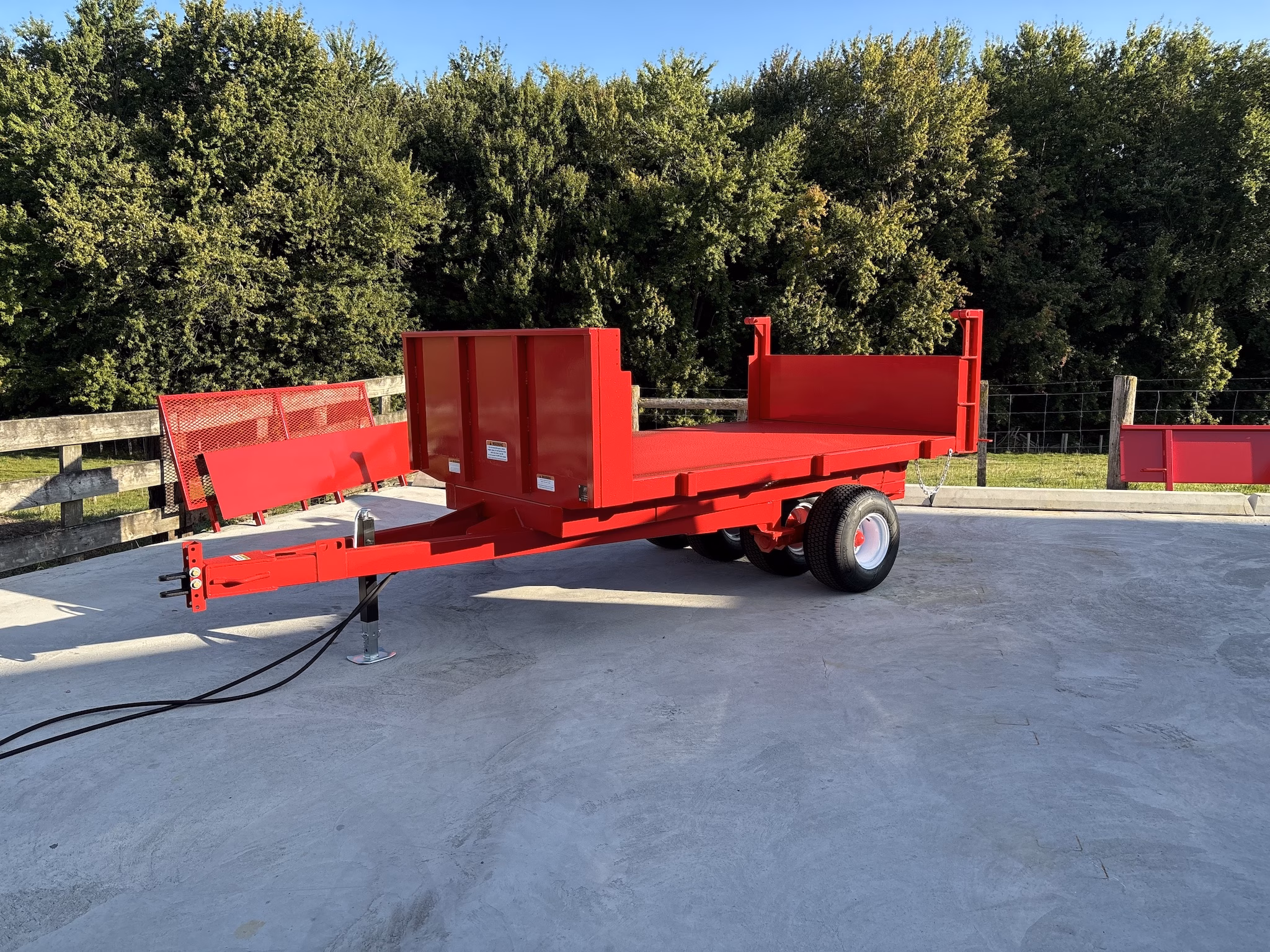

Both sides removed

Removable sides

Auto Latch

The auto latch allows the tailgate to release and lock when the dump trailer is lifted and lowered. This eliminates the need to leave the tractor to keep you working.

Auto latch tailgate

Auto latch mechanism

Turf Tires

The DT610 features four (4) 26x12-12 Carlisle turf tires to provide floatation on delicate surfaces.

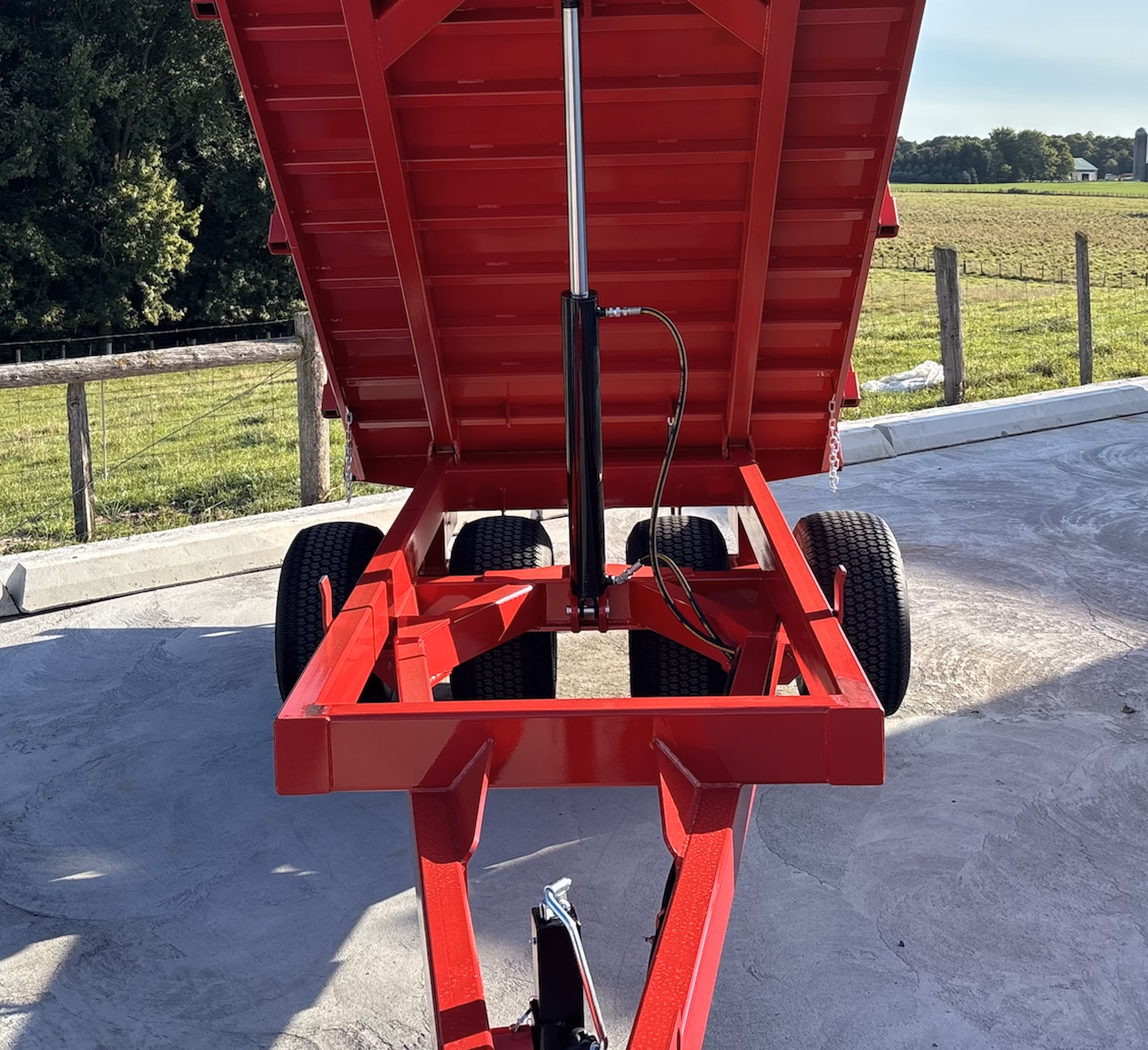

4 turf tires mounted on 2 walking beam axles

6 bolt rims

26x12-12 Carlisle turf tires

Hitch

The hitch on the DT610 features an adjustable height tongue, hydraulic hose storage, and a heavy duty jack.

Adjustable height tongue

Jack stand

Pivoting jack

Side Mesh (Optional)

The side mesh is an optional feature that can be added on either or both sides of the DT610. Intended for use when fraze mowing and trenching fields/ golf courses helping to eliminate overshooting the trailer.

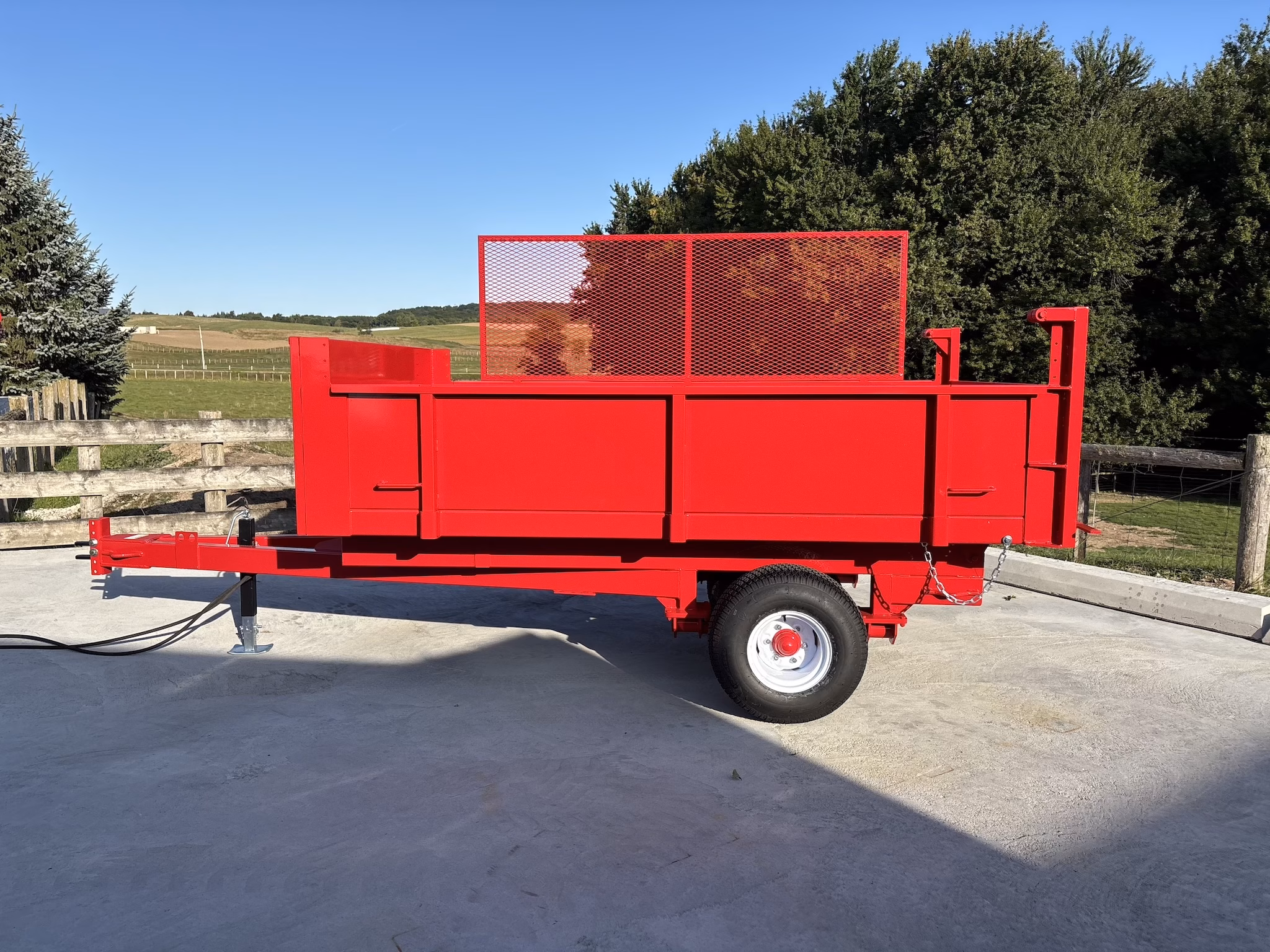

Side view of dump trailer with mesh

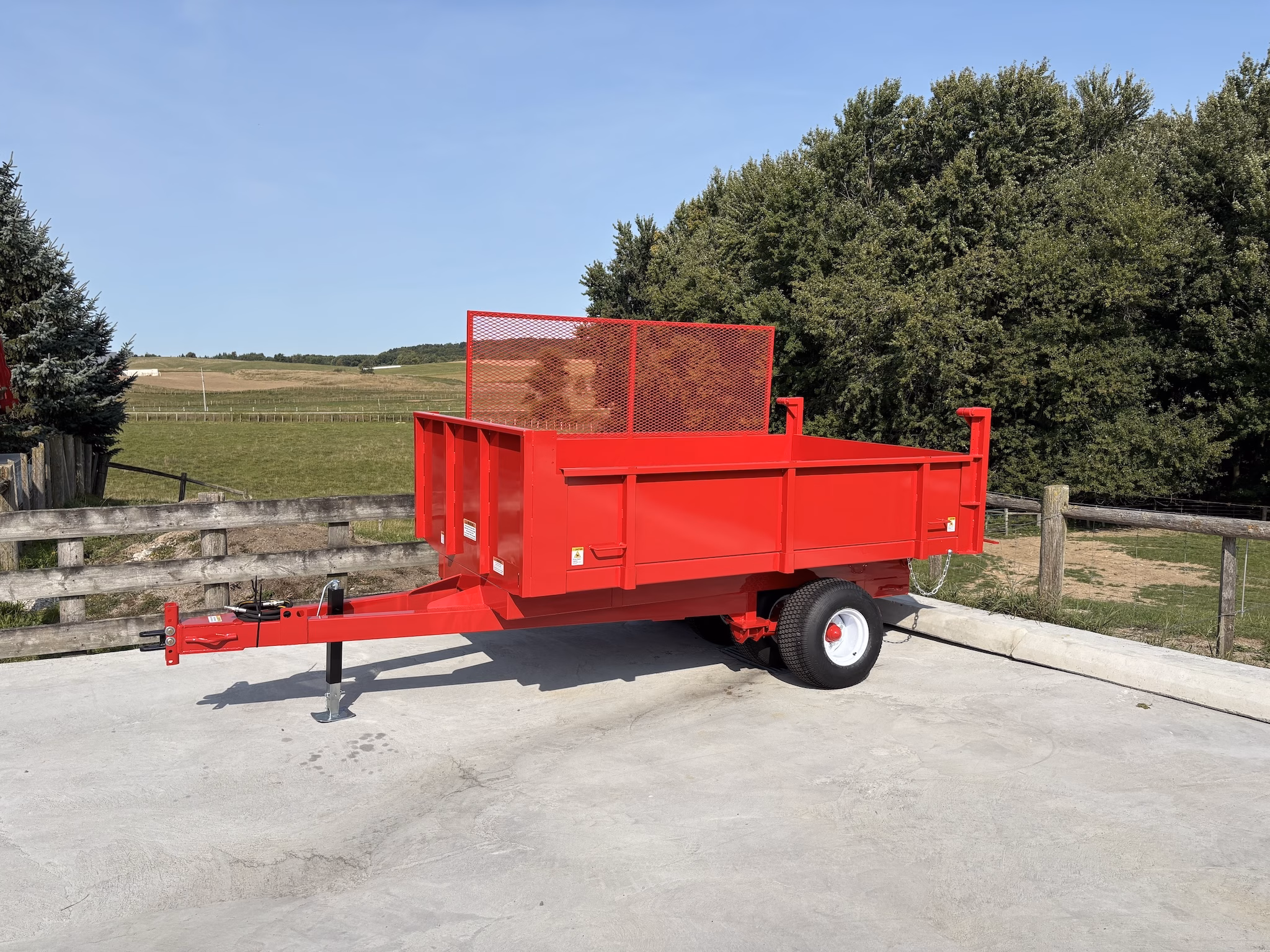

Mesh installed

Mesh side removed

Specifications

SKU DT610
GVWR 13,000 lbs (5 ton carry capacity)
Weight 2,700 lbs (1225 kgs) empty
Level Filled 3.7 cubic yards (2.8 cubic meters )
Bed Size 6' x 10' (1.83m x 3.05m)
Bed Height 33” ( 84cm)
Sides 20” (51cm) removable sides with extension mounting for 2x4, 2x6, or 2x8 boards
Tailgate Automatic release with adjustable chains for metered spreading
Dump Angle 45 degrees
Axles Four wheel walking beam for 30 degrees of slope
Tires 26x12-12 Turf Tires
Loaded Speed Rating 10 mph (16 km/hr) fully loaded
Hydraulic Cylinder Double acting
Heavy Duty Jack 8,000 lbs
(3630 kgs) holding ; 7,000 lbs (3175 kgs) lifting
